SPECIFICATIONS

Marca: smar

Origine: CN (Origine)

Prodotto chimico ad alto interesse: Nessuno

Network Protocol: SMTP

Network Protocol: FTP

Network Protocol: HTTP

Network Protocol: DHCP

Network Protocol: DNS

Network Protocol: TCP/IP

Network Protocol: UPNP

Network Protocol: DDNS

Network Protocol: PPPoE

Two-way Audio: no

Disposizione di compressione: H.265

Disposizione di compressione: H.264

Wireless Security: WPA2

Hard drive Interface Type: SATA

POE: Nessuno

Certificazione: NONE

e-Cloud(P2P): YES

IP Mode: Dynamic IP address

IP Mode: Static IP address

Hard Drive Size: 3.5''

Supported Mobile Systems: iPhone OS

Supported Mobile Systems: Android

Supported Mobile Systems: Windows Mobile

Audio Compression Format: G711A

Numero modello: NX1009K/N008F/N1016GL

Entrata audio: No

Tecnologia: network

Supported Operating Systems: Microsoft Windows 2000

Supported Operating Systems: Microsoft Windows ME

Supported Operating Systems: Microsoft Windows Vista

Supported Operating Systems: Microsoft Windows 98

Supported Operating Systems: Microsoft Windows 7

Video Standard: NTSC

Video Standard: PAL

Piattaforma di casa intelligente: NONE

Backup Type: Azionamento duro

Backup Type: Recorder

Backup Type: USB Flash Divers

Risoluzione video: 960P

Risoluzione video: 720p

Risoluzione video: 1080p

Risoluzione video: 5mp

Risoluzione video: 3MP

Risoluzione video: 4MP

Alarm Action: FTP Photo

Alarm Action: Email Photo

Alarm Action: Local Alarm

Network Interface: RJ45 10/100M

Uscita audio: Nessuno

Communication Interface: RS232

Name: Network Video Recorder

Display quality: XM is 1080P/ Hi3536 is 4K

Playback quality: XM is 4K / Hi3536 is 4K

HDD: 1* SATA(Up to 8TB for each disk)

Face Identification: Support

ONVIF: Support

APP/Cloud: XMEYE

WIFI: XM not support/ Hi3536 support

Wifi Adfapter: Support 7601 model

32CH: 32CH is NT98323

32CH: Support 32*4K IP Camera

Choice: yes

semi_Choice: yes

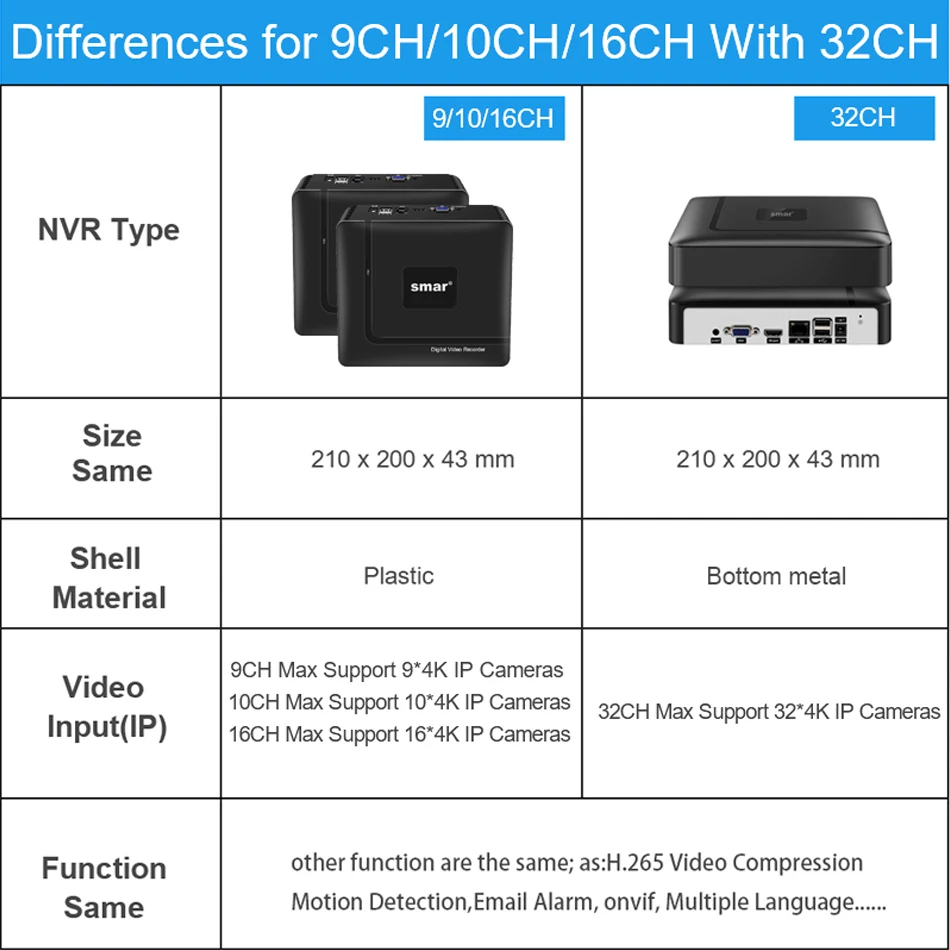

32CH NVR is differences with9CH/ 10CH/16CH NVR
Differences1: 32CH Shell Material: Botton Metal(White), 9CH/10CH/16CH Shell Material:Plastic(Full Black)
Differeance2:Video Input(IP): 9CH Max support 9*4K IP Cameras,10CH max support 10*4K IP Cameras,16CH max support 16*4K IP Cameras,32CH max support 32*4K IP Cameras.

Same: Other function are the same,as H.265 Video Compression,motion detection,Email alarm,Multiple Language....
Please check the picture as follow：



	Specifications	9CH	10CH	16CH	32CH
System	Main processor	XM8536D	XM8536E	XM8536E	NT98323
	Operating System	Embedded Linux
	System resources	Simultaneous multi-channel real-time recording, playback, network operation, USB backup
Interface	Operator interface	16-bit true color graphic menu operation interface, support mouse operation
	Preview	1/2/4/6/8/9	1/2/4/6/9/10	1/2/4/6/8/9/16	1/2/4/6/8/9/16/36
Video	Video input (IP	9*4K Unreal-time（Access bandwidth 60Mbps）	10*4K（Access bandwidth 72Mbps）	16*4K（Access bandwidth 72Mbps）	36*4K
	Video compression	H.265AI/H.265+(compatible H.265/H.264)
	Display quality	Max:4K
	Playback quality	4K/5M/4M/3M/1080P
	VR	Not support
	human shape / Face	Support(depend on camera,the camera of NETIP protocol can support face recognition)
Audio	Audio compression	G.711A
	Intercom	support
Record & playback	Recording mode	Manual>Alarm>Dynamic Detection>Timing
	Localpayback(real-time+ Un real-time)	1ch4K/2ch5M/1ch4M /2ch3M/3h1080P	1ch4k/2ch5M/2ch4M/ 3ch3M/5ch1080P	1ch4k/2ch5M/2ch4M/ 3ch3M/4ch1080P	2ch4K@12fps/3ch5M@20fps/4ch4M@20fps/4ch3M@20fps/6ch1080P@25fps
	Search mode	Search by Time/Calendar/Event/Channel/Face
	Record storage	HDD、Network
	Backup mode	Network backup, USB hard disk, USB burner, SATA burner
External interface	Video output	1ch VGA，1ch HDMI HD output
	Audio I/O	1/1（3.5mm）
	Alarm I/O	0/0
	Network interface	1*RJ45 10M/100M Adaptive Ethernet port			1*RJ45 100M/1000M Adaptive Ethernet port
	USB interface	2*USB2.0 ports(one USB extension interface is reserved)
	HDD	1 SATA(Up to 14TB for each disk)
	ESATA	No
	Serial interface	No
Other	ONVIF	Support
	power supplyr	DC12V 2A(If the hard drive is greater than 2TB, please replace it with a 3A or higher power supply)
	Power Consumption	<10W(Without HDD)
	Work environment	Temperature:0°C －55°C, Humidity:10%－90%RH , Atm:86kpa－106kp

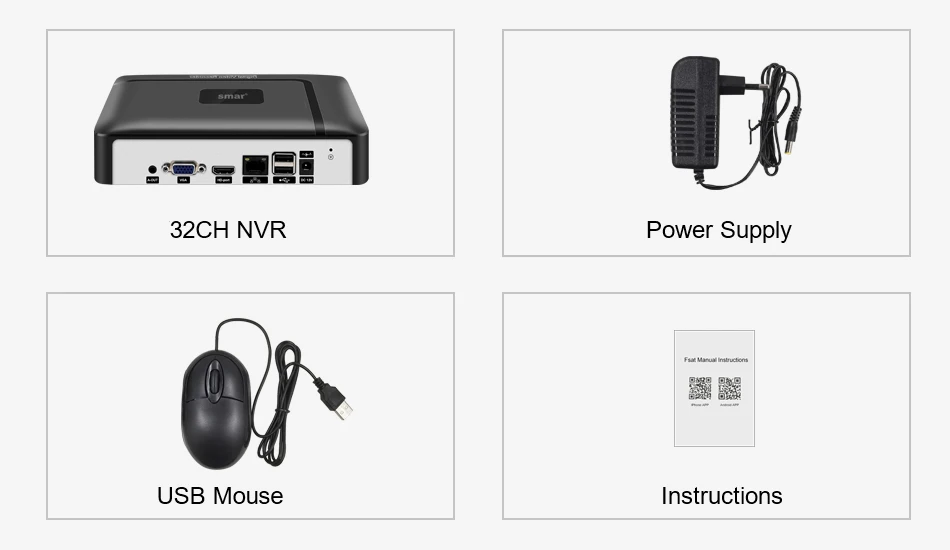

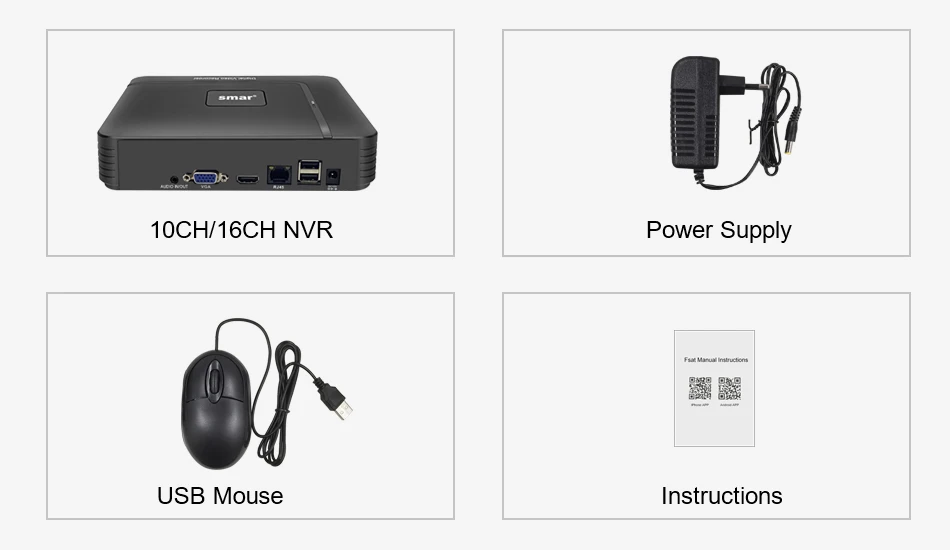

Packing List:

1* 9CH/ 10CH/16CH/32CH H.265 NVR
1* USB Mouse
1* DC12V Power Adapter for NVR
1* User's Manual

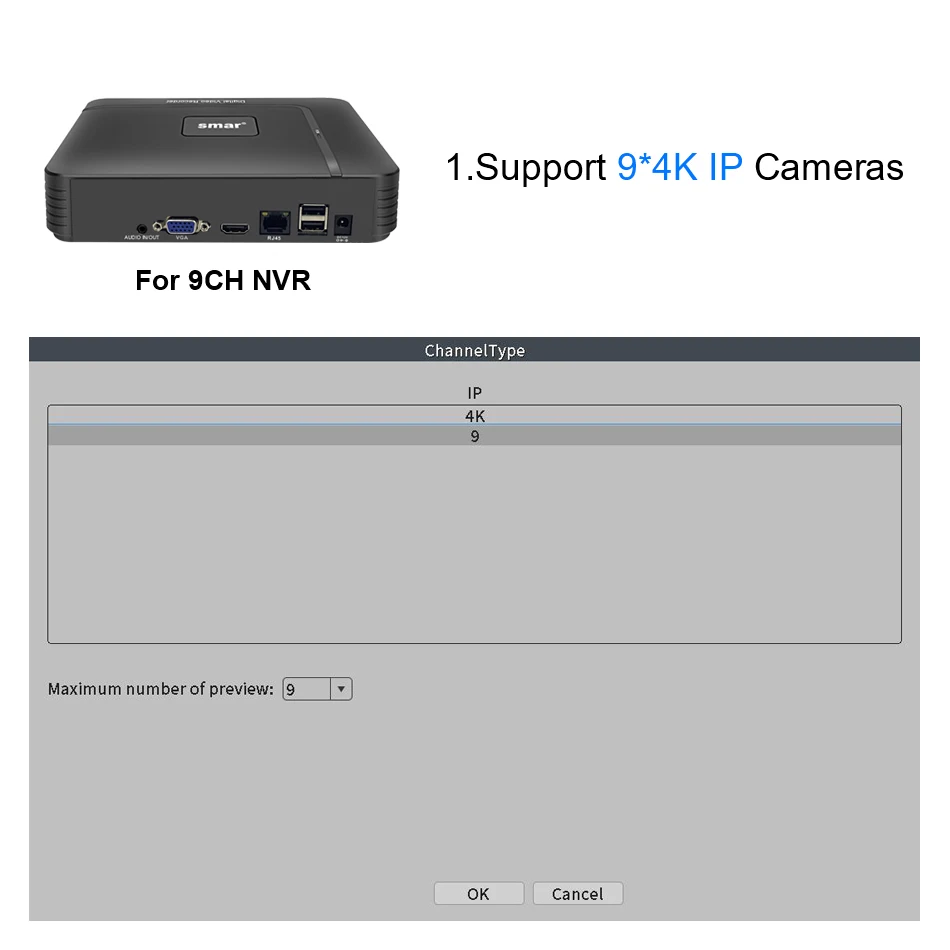

For 9CH NVR:

1. 9CH: it's XM8536D Chip;
2. Max support 9*4K(8MP) IP Camera
3. Don't support Wifi Adapter;
4. 9CH(XM) Max Support 1920x1080P Display

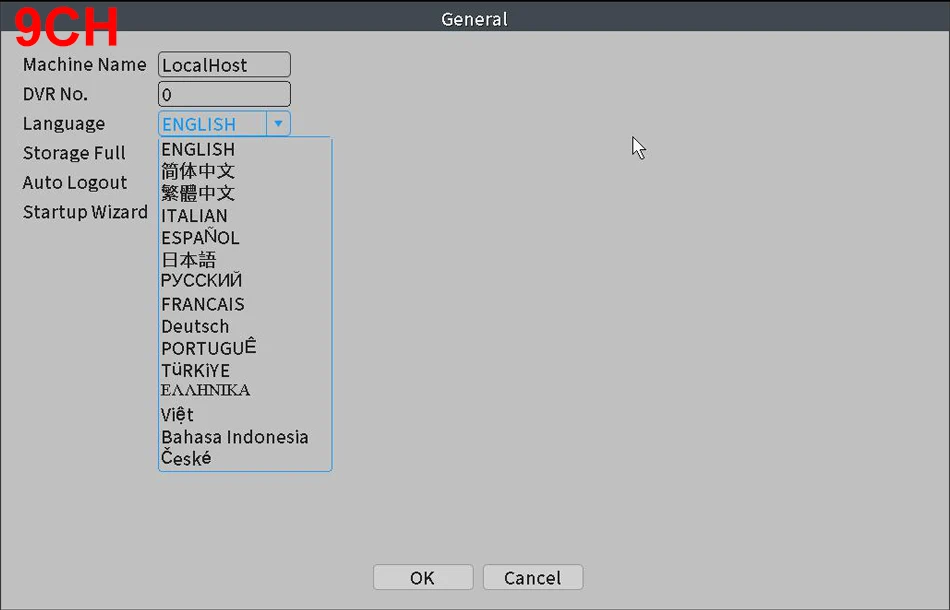

5.Support Multiple Languages: Chinese, English, Italian, Spanish, Japanese, Russian, French, Germany, Portuguese, Turkish, Greek, Vietnamese, Indonesian, Czech

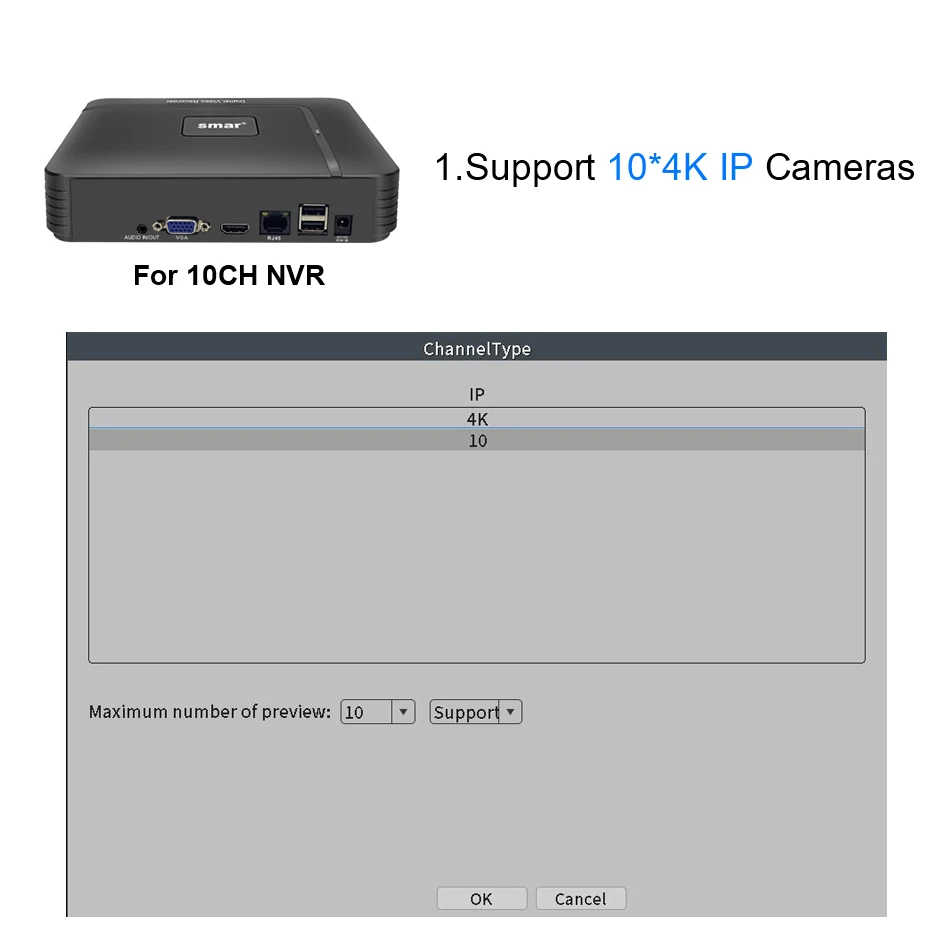

For 10CH NVR:

1.10CH:It's XM8536E Chip (The inventory chips in the Moscow warehouse are：Mstar)
2. Max support 10*4K(8MP) IP Camera

3. Don't support Wifi Adapter;
4.10CH(Hi3536) Max Support the 4K Display

5.Support Multiple Languages: Chinese, English, Italian, Spanish, Japanese, Russian, French, Germany, Portuguese, Turkish, Greek, Vietnamese, Indonesian, Czech

For 16CH NVR:

1.16CH is XM8536E Chip;
2. Max support 16*4K(8MP) IP Camera
3. Don't Support Wifi Adapter
4.16CH(XM8536E) Board Max Support the 4K Display

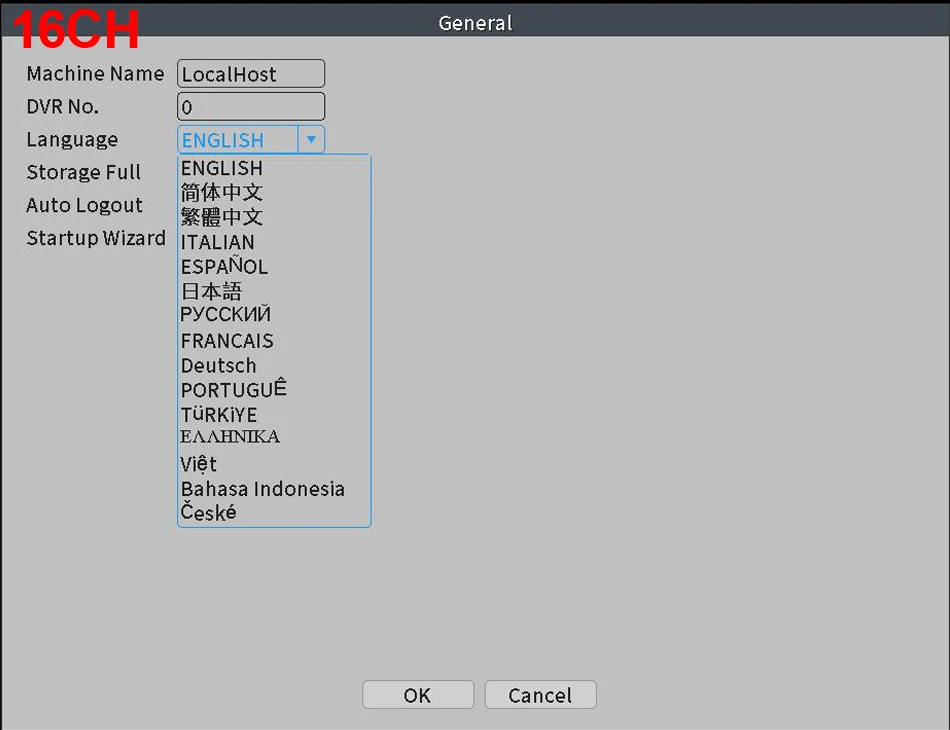

5.Support Multiple Languages: Chinese, English, Italian, Spanish, Japanese, Russian, French, Germany, Portuguese, Turkish, Greek, Vietnamese, Indonesian, Czech



For 32CH NVR:

1.32CH is NT98323 Chip;
2. Max support 36*4K(8MP) IP Camera
3. Support Wifi Adapter, the Wifi Adapter model is:7601
4.32CH(NT982323) Max Support the 4K Display

5.Support Multiple Languages: Chinese, English, Italian, Spanish, Japanese, Russian, French, Germany, Portuguese, Turkish, Polish, Romanian, Hungarian, Finnish, Persian, Thai, Greek, Vietnamese, Brazilian, Hebrew, Indonesian, Arabic, Swedish, Czech, Bulgarian, Slovak, Dutch

Face Record/Face Detection/Face Playback

Record every face that appears on the lens, without missing any details.
You need use the Face Detction Function IP Camera

Your Camera Must support XM Face Detection, or will not work)

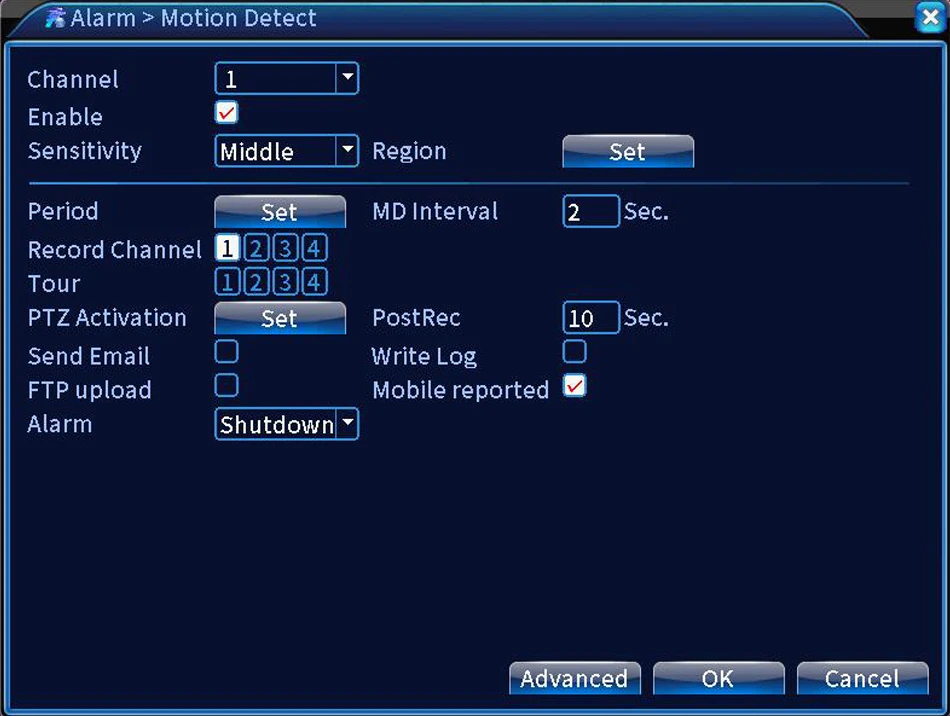

Motion Detection & Email Alert

When the Detect Motion happened in your home and office. you'll get instant alarming email when the home or office is invaded. You can even ensure that false alarms are avoided by setting the motion detection "mask"to block areas with constant movement.

Note:Our DVR Motion Detection Function only Support the following Brand of IP Camera; As: XM, Dahua, Safer, HIVT, Part of HIKVISION. And if your IP Camera is other Brand, Can't used the Motion Detection Function with Our DVR. ( Please note before when you buying)

E-mail Set

Please note: SMTP Server only support these Email Box:126,163,gmail,sina,139,156,qq format, And the recipient can set up 5 vaild mail.
Mail Testing: Test message sent success(It's OK)
Mail Testing: Failed to connect to server.(It's failure)



Advanced H.265+ Video Compression

H.265 (HEVC) doubles the coding efficiency compared with its predecessor H.264. That means H.265+ video saves around 70% of the bit rate at the same quality of coding, HD resolution offer you best image quality in a lower bit rate,save your HDD storage space and reduce your purchase cost.

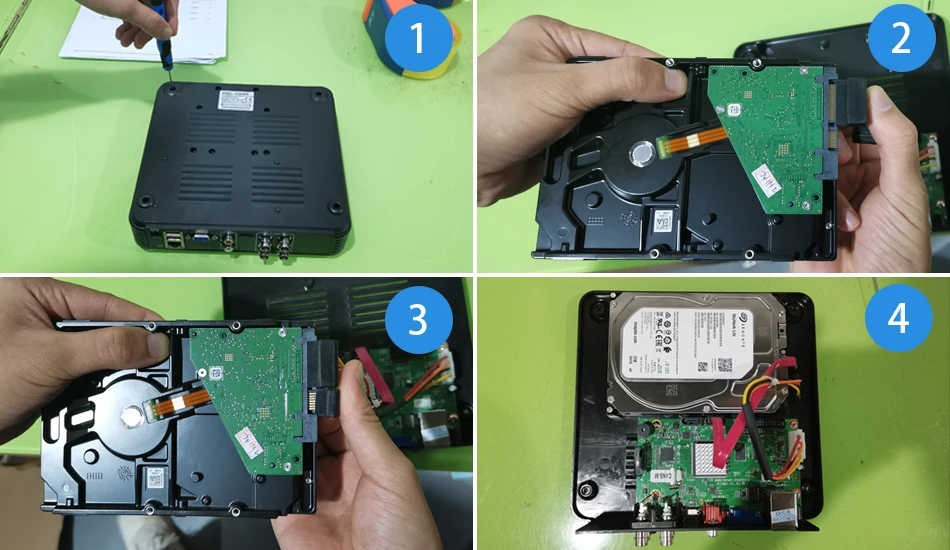

Please refer to the following picture for how to install the hard disk:
